SEABOB F5 S
Seabob F5 S – a High performance toy
For intense pleasure driving in the water
For people looking for intense fun and enjoyment in their lives, we build water sleds with the greatest thrill factor in the world.
The Seabob F5 S is also a lightweight device tipping the scales at approximately 35 kg. It distinguishes itself by means of its strong driving performance and its irrepressible propulsion in the water.
Seabob F5 S doesn’t require a driving license and their electrical drive make it completely ecologically sound. High performance toys for intense fun in the water and emission free for zero impact on the enviroment.

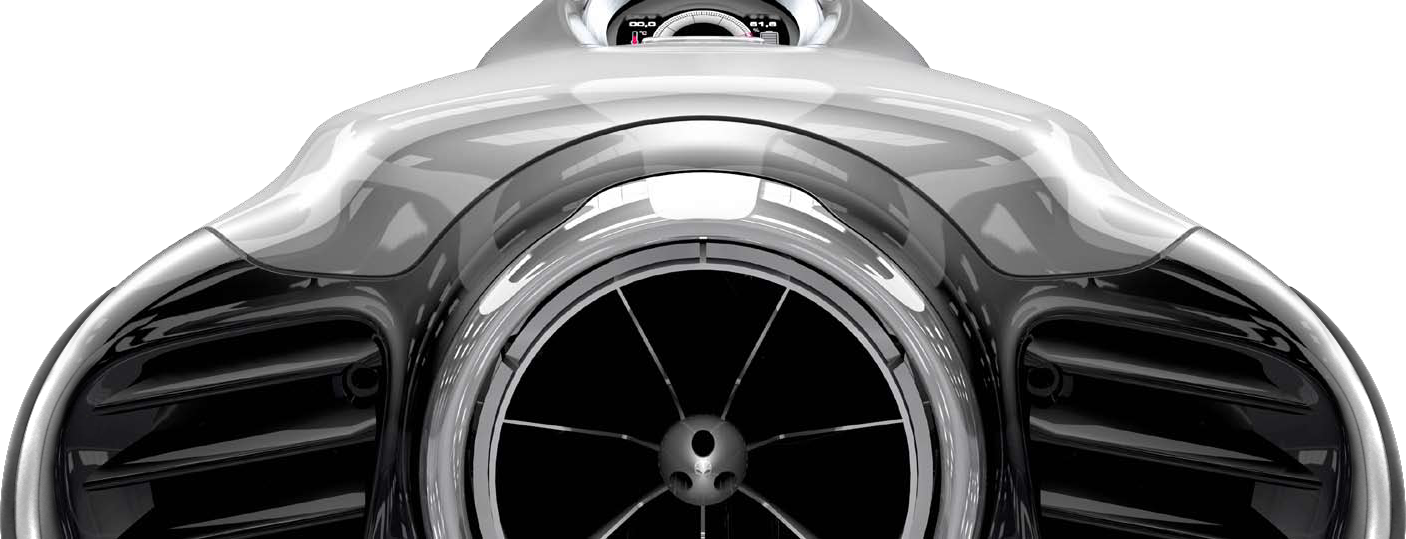

Seabob F5 S E-Jet Power System
Emission-free drive technology
The worldwide patented E-Jet Power System works according to the principle of water displacement. The water is sucked in by the powerfully rotating impeller and forced out in the channel under high pressure. The thrust developed in this way propels the Seabob forward in superior fashion.
Maximum thrust requiring little energy makes the E-Jet Power System a unique drive mechanism for powerful watercraft. Thanks to its electro-technology, the system is absolutely environmentally friendly and offers extremely low operating costs.
Are you ready for Seabob F5 S?
Turn up the power and away you go
If you are looking for the ultimate driving pleasure, simply head for the water. No boundaries, no limits. Experience vast open spaces and pure freedom with the Seabob. Whatever gear you have selected.
Speed is regulated via the Controlgrip. The enormous thrust generated between the power levels lends the Seabob a dynamism and fascination beyond compare.
High-tech across the board
Quality right down to the last detail
The Seabob F5 Sis the absolute paragon of cutting edge technology. In order for the vehicle to live up to this claim, the drive unit was made using premium carbon elements, established ceramic coatings and precious metals resistant to salt water.
Meticulously hand-crafted, this water sports vehicle is made of top-grade materials. The uncompromising quality standard of each Seabob F5 S is reflected in each and every detail.
Unlimited riding pleasure
Relaxed or intensive
Leisurely gliding. Sporty driving in the water. Safe diving under water. All this is possible with a Seabob. Now you can actually move through the water like a fish. Freely, both on the surface and at depth.
At the same time, the Seabob is completely environmentally friendly when in its element. It zooms powerfully and almost silently through the water. Man and machine in perfect harmony.
Discover the fascinating underwater world in a new dimension.
Rediscover the element
Intense and irrepressible
A Seabob offers all-round high-performance. Its hydrodynamic shape provides for an astounding degree of agility in the water. Steering and diving could not be easier – all it requires is fo the pilot to shift his body weight.
Whether you are cruising, zipping through the water of diving. The Seabob will glide along powerfully with you aboard. Feel the awe-inspiring manoeuvrability. And the new-found desire for water will never relinquish its hold on you again.
Anything is possible
Experience agility under water
The dynamism of the Seabob jet develops its special appeal under the water. The watercraft can be steered down into depths simply by applying light pressure. Man and machine in unison, darting around nimbly.
Diving depths of up to 40 meters can be programmed to suit individual requirements via the on-board electronics. A safety cut-off feature reliably ensures that the selected diving depth is not exceeded.
Seabob F5 S with Optimal handling
Low weight with powerful thrust
Easy handling was the uncompromising objective set when developing the new Seabob F5 generation. For this reason, the challenge in terms of development was clearly defined – Low overall weight. Extremely stable housing. Powerful drive. These properties make the Seabob F5 S a unique water sports craft. The vehicle can be used anywhere and offers optimal handling.
Seabob F5 S Technology
A development with responsibility for the environment
The specially developed, high-performance electric-drive mechanism with its environmentally friendly technology is an exemplary innovation.
The motor is a high torque synchronised drive unit featuring a microprocessor-controlled 3-phase sinus power management system. The application of cutting edge technology enables this motor to achieve the ideal amount of torque with outstanding efficiency. All this, and yet the overall design remains very compact.
The power for the drive mechanism is provided by highly efficient lithium-manganese accumulators. These high-performance special accumulators are a top-class quality component in the propulsion concept of the Seabob.
The Controlgrips
Switch gears for the power.
Determine the direction.
A Seabob F5 S is the absolute embodiment of state-of-the-art technology.The pilot steers his water sports craft via two intelligent Controlgrips with Piezo technology.
The drive mechanism is activated by squeezing the trigger. Applying light pressure to the green sensor accelerates the device in continuous powerful thrusts until the desired speed is reached. Propulsion is reduced by pressing the red sensor, thereby slowing down the Seabob. If required, the craft can be brought to an immediate stop simply by releasing the trigger.
Two further Piezo buttons enable the pilot to program an individual data menu. This includes the electronically-controlled setting of diving depth, operation time and additional parameters.

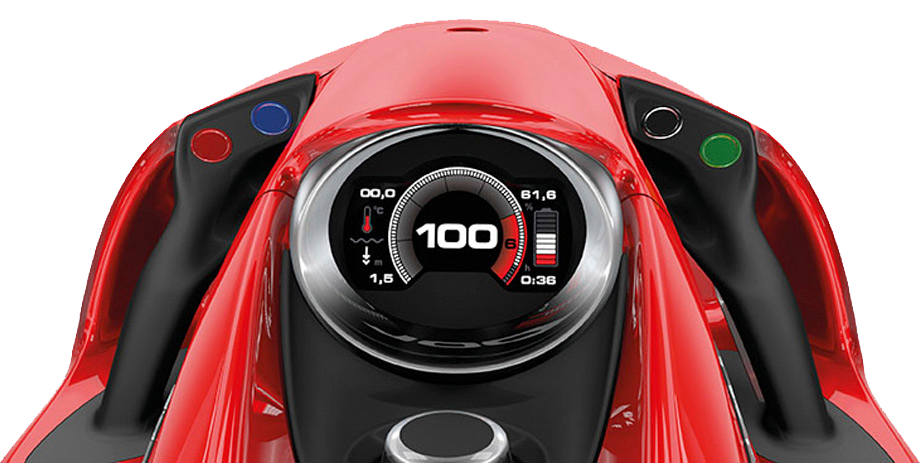

The cockpit
Clear view. Perfect control.
The central cockpit is located exactly in the driver’s field of vision. All important technical data from the engine electronics is shown accurately via the TFT colour display.
It provides the pilot with information on the current driving performance and the selected power level. The accumulator charge state and the remaining operating time indicated allow you to reliably keep track of the residual capacity.
Furthermore, the driver receives up-to-date information regarding his diving depth and water temperature. The programming functions of the menu can also be conveniently controlled via the TFT display.

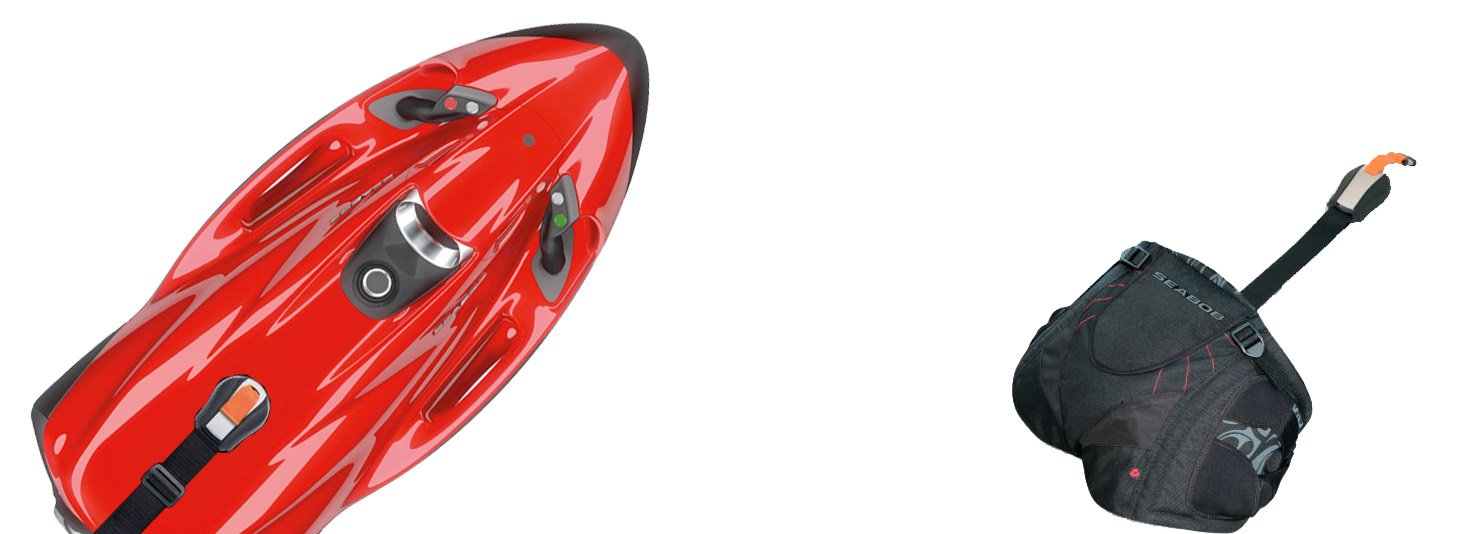

The Pilot belt system
A strong connection
With its high performance drive, the Seabob is the embodiment of strength and ultimate power. The pilot belt system has been developed specifically for sporty driving in the top speed range. The innovative belt system transforms the tremendous thrust into an exhilarating riding experience and even greater agility in the water.
The Colours
Make your Choice
Its design is facinating. Its concept unique. The Seabob F5 S is a real eye-catcher. Give it the colour of your choice.
Exclusive range of special colours available. These shades will lend you Seabob a unique and sporty character
Special Colours
Sporty and personalised
Exclusive colours add the finishing touch to the powerful and sporty image exuded by the Seabob.
The special colours are specifically selected paints or multi-layer lacquer systems with special effects. These paints are applied laboriously and meticulously in order to lend your Seabob a personalised and expressive character.
You are safe with us
24/7 Worldwide Seabob support
Your Seabob F5 S comes with a 2-Year warranty. We offer worldwide service and support 24/7.
SEABOB F5 S TECHNICAL DETAILS
| Performance up to | 4.0 kW |
| Maximum Thrust | 680 N |
| Speed over water up to Speed under water up to |
20 km/h 14 km/h |
| Accumulator capacity | 1.8 kW/h; 48V; 38 Ah |
| Average operating time | 60 min |
| Standard charging approx. Quick charging approx. |
8 h 1 h 30 min |
| Diving depth up to | 40 m |
| Dimensions L x W x H (in mm) | 1,152x507x372 |
| Weight | 35kg |
| Bouyancy in water | 10 kg |
The Seabob F5 S is the ultimate high-performance craft. Weighting just 35 kg, the vehicle possesses extremely good handling properties out of the water. Its driving performance is second to none. The Seabob F5 S boasts an impressive propulsive force of 680 newtons. The E-Jet Power System is controlled in 6 power levels. These gears of the Seabob F5 S allow you to glide along at a relaxed pace in a low gear or, for more ambitious high-speed driving, switch up to 6th gear. The craft has a highly sporty character and stands out in terms of its extraordinary dynamism. Its sporty appearance is emphasised by elements in a chrome design. The Seabob F5 S is at home in the sea. Its high degree of manoeuvrability also makes it ideally suited for use in larger pool complexes.
